Setting up an raspberrypi4 k3s-cluster with nfs persistent-storage

There are not many options to add persistent-storage to a k3s raspberry cluster. I will present you a relative simple and powerfull method with the nfs-client-provisioner.

UPDATE: Updated to new NFS-Client provisioner repository and kubernetes version

Install k3s

Will it cluster? k3s on your Raspberry Pi

Install on Master

curl -sfL https://get.k3s.io | sh -

Check with systemctl if its running

sudo systemctl status k3s

Get token for worker-nodes

sudo cat /var/lib/rancher/k3s/server/node-token
K108e1a745eb43ad8cf51a08534545340dbf0c8fcdfa3b76a3fb86c837c75a1::node:be4429c2343d37b779e54a45656557e2

Join a worker

export K3S_URL="https://your_ip_or_url_of_master:6443"
export K3S_TOKEN="K108e1a745eb43ad8cf51a08534545340dbf0c8fcdfa3b76a3fb86c837c75a1::node:be4429c2343d37b779e54a45656557e2"
curl -sfL https://get.k3s.io | sh -

Verify your cluster

$ kubectl get node
NAME    STATUS   ROLES    AGE   VERSION
node1   Ready    master   58m   v1.14.5-k3s.1
node2   Ready    worker   41s   v1.14.5-k3s.1

Master and worker are ready, now you can start with the fun part. :-)

Install a nfs-server

Turn Raspberry Pi Into a Network File System Version 4 (NFSv4) Server

I’ve created a folder named nfs in the home-directory on my nfs-server with following nfs-exports(all in one line):

/home/my_user/nfs 192.168.178.0/24(rw,all_squash,insecure,async,no_subtree_check,anonuid=1000,anongid=1000)

and my nfs-server Hostname is my-srv (the IP can also be used instead).

Install the nfs-client-provisioner to the cluster

The nfs-client-provisioner automaticly provision storage(persistent volumes) for your applications on a nfs-server. You only need to specify a Persistent-Volume-Claim and use this claim in your deployments

kubernetes-sigs/nfs-subdir-external-provisioner

Download necessary files for deploing the provisioner:

wget https://github.com/kubernetes-sigs/nfs-subdir-external-provisioner/raw/master/deploy/rbac.yaml
wget https://github.com/kubernetes-sigs/nfs-subdir-external-provisioner/raw/master/deploy/class.yaml
wget https://github.com/kubernetes-sigs/nfs-subdir-external-provisioner/blob/master/deploy/deployment-arm.yaml

Install nfs-utils on all kubernetes nodes (on the hosts):

(On newer kubernetes versions this is needed for nfs to work)

apt-get install -y nfs-common

Edit deployment-arm.yaml
Replace the bold text with your nfs-server hostname and path:

kind: Deployment
apiVersion: apps/v1
metadata:
  name: nfs-client-provisioner
spec:
  replicas: 1
  strategy:
    type: Recreate
  template:
    metadata:
      labels:
        app: nfs-client-provisioner
    spec:
      serviceAccountName: nfs-client-provisioner
      containers:
        - name: nfs-client-provisioner
          image: quay.io/external_storage/nfs-client-provisioner:latest
          volumeMounts:
            - name: nfs-client-root
              mountPath: /persistentvolumes
          env:
            - name: PROVISIONER_NAME
              value: fuseim.pri/ifs
            - name: NFS_SERVER
              value: my-srv
            - name: NFS_PATH
              value: /home/my_user/nfs
      volumes:
        - name: nfs-client-root
          nfs:
            server: my-srv
            path: /home/my_user/nfs

Execute scripts:

sudo kubectl create -f rbac.yaml
sudo kubectl create -f deployment-arm.yaml
sudo kubectl create -f class.yaml

Deploy Ghost-Blog

As a example i will deploy ghost-blog. It uses sqlite3 for persistent storage.

Create a PersistentVolumeClaim

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: ghost-pv-claim
  annotations:
    volume.beta.kubernetes.io/storage-class: "managed-nfs-storage"
  labels:
    app: blog
spec:
  accessModes:
    - ReadWriteMany
  resources:
    requests:
      storage: 5Gi
sudo kubectl create -f volume.yaml

To use the nfs-storage its important to set the storage class in annotations! The name of the claim is used in the deployment below.

Create a deployment

apiVersion: apps/v1
kind: Deployment
metadata:
  name: blog
  labels:
    app: blog
spec:
  replicas: 2
  selector:
    matchLabels:
      app: blog
  template:
    metadata:
      labels:
        app: blog
    spec:
      containers:
      - name: blog
        image: ghost:2.28-alpine
        imagePullPolicy: Always
        ports:
        - containerPort: 2368
        env:
        - name: url
          value: http://my-blog.com
        volumeMounts:
        - mountPath: /var/lib/ghost/content
          name: content
      volumes:
       - name: content
         persistentVolumeClaim:
           claimName: ghost-pv-claim
sudo kubectl create -f deployment.yaml

The mountPath will be mounted to the persistentVolume.

Check if the PVC is working correctly:

To check if the persistent storage with nfs is working as expected you can check the created folder on your nfs-server:

~/nfs$ ls
default-ghost-pv-claim-pvc-efae13ea-c131-11e9-8496-dca63208ed94
cd default-ghost-pv-claim-pvc-efae13ea-c131-11e9-8496-dca63208ed94
/nfs/default-ghost-pv-claim-pvc-efae13ea-c131-11e9-8496-dca63208ed94$ ls
apps  data  images  logs  settings  themes

You can see the persistent data of ghost on the nfs-server

Harvest the fruits

You can access your ghost-deployment with port-forwarding:

kubectl port-forward <pod-name> 2368

Go to localhost on your browser

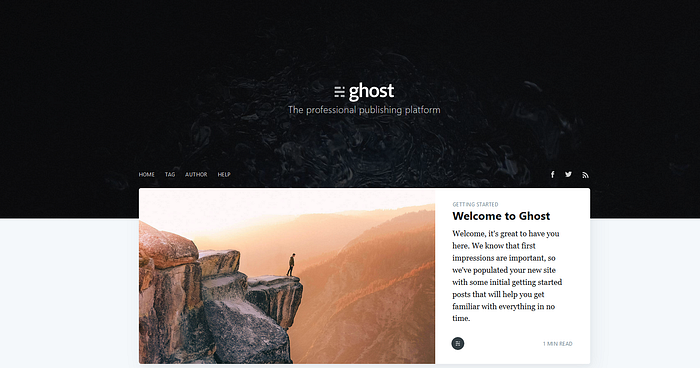

Our ghost application running in k3s on raspberry cluster!!

Hurray!!

Whats next

• Using traefik as an ingress-controller for access the blog from the outside with https-support with let’s encrypt.
• Using Postgres instead of sqlite3
